Manual Butterfly Valve
Manual Butterfly Valve

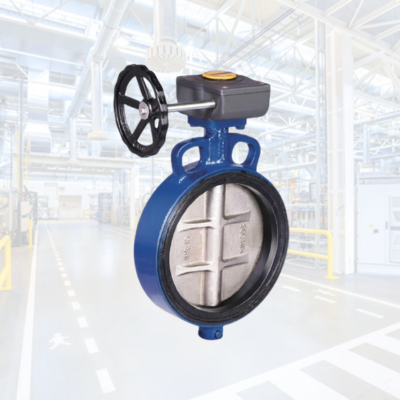

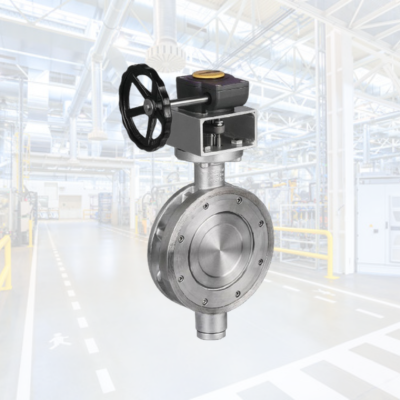

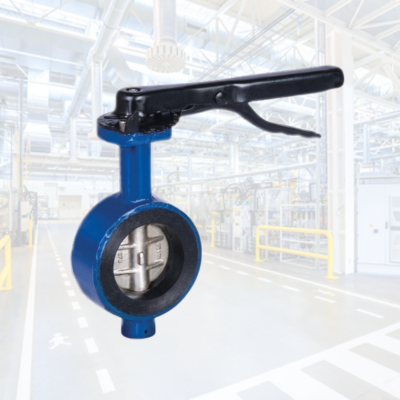

Pneucon Butterfly Valve, with integrally moulded elastomers body sleeve are designed for longer life and trouble free performance. Integrally moulded sleeve ensures perfect resistance against friction between the disc and the sleeve.
SPECIFICATION
- Valve Size: 1 ½” (40 mm) to 36″ (900 mm)
- Rating: ANSI / BS 125# / 150#
- Design: Centric Disc, Single to Triple Offset Disc
- Fully Lined & Unlined Body
- End Connection: Wafer, Lugged & Double Flanged
- Operation: Wrench / Manual Gear
- Port Opening: Full
- Seat: Nitrile /EPDM / Neoprene / Silicon / Viton etc.
- Disc: Solid Dual Shaft / Single Shaft
- Design Code : API – 609 / BS – 5155
- Testing : API 598
