3 Way Ball Valve with Rotary Actuator

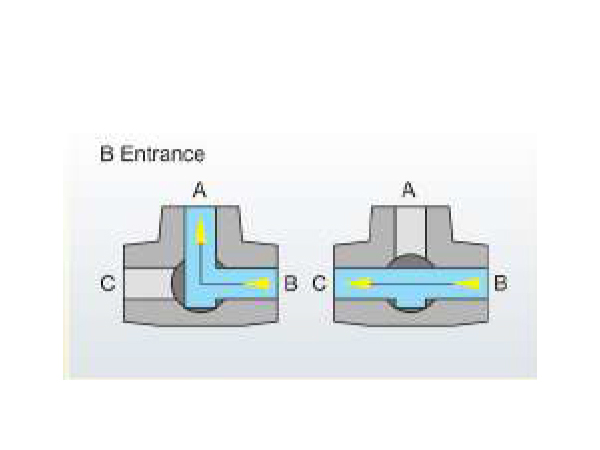

• Three Way Ball Valve is available in either “L” Port or “T” Port.

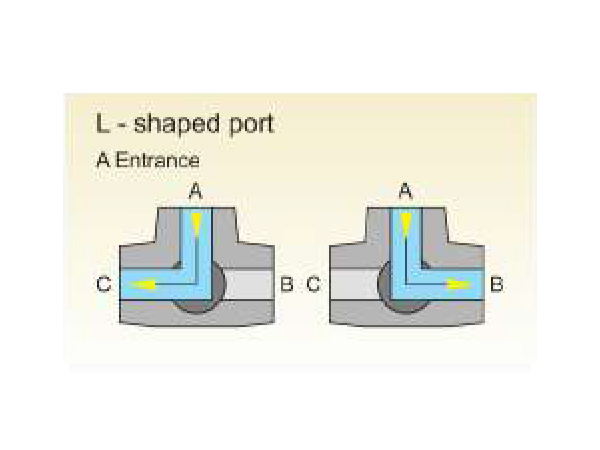

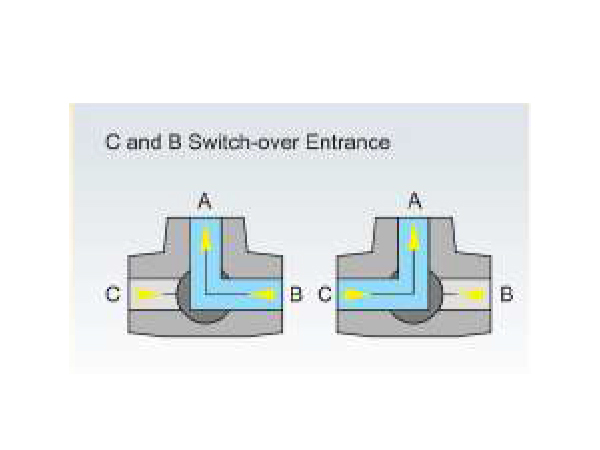

• “L” Port Three Way Ball Valve is used for pipelines to switch the flow direction of two-flow lines perpendicular with each other.

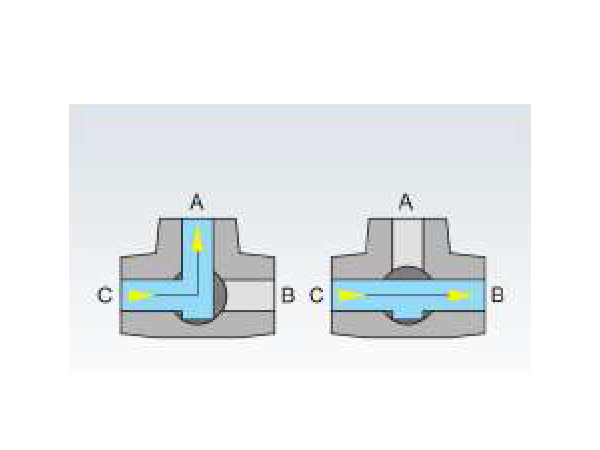

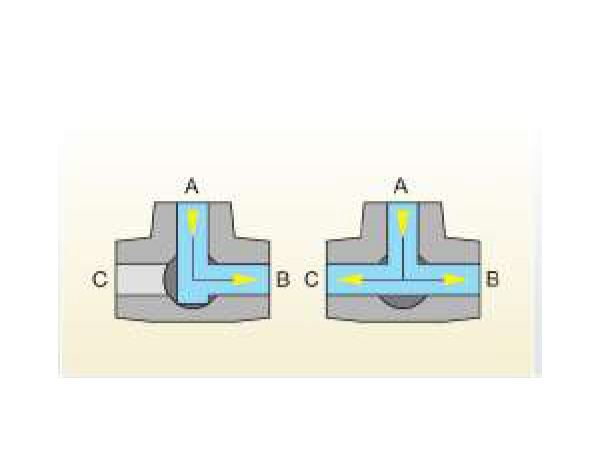

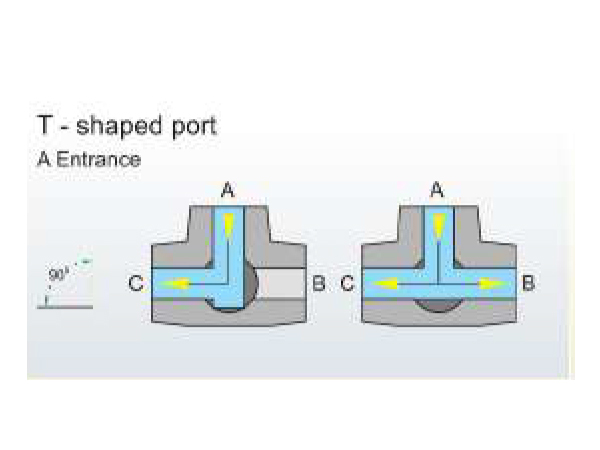

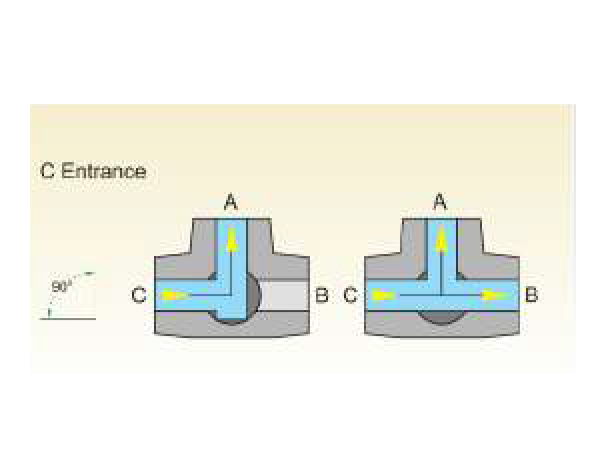

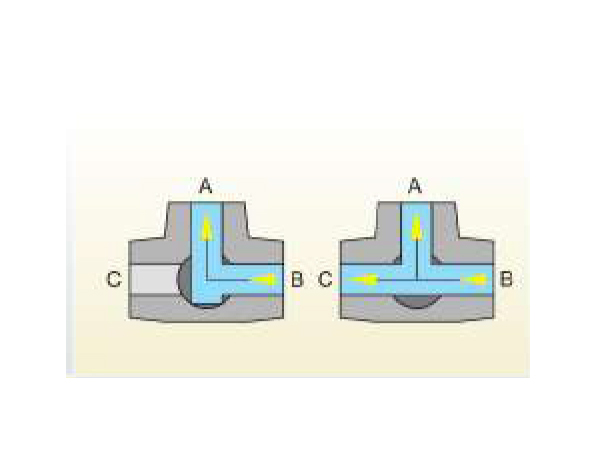

• “T” Port Three Way Ball Valve is used for diverting, mixing or switching the flow direction.
• Ball passage is able to switch on three flow lines or switch on two of the three flow lines.

Features

• Four Seats for equal seat loading.
• Gland Packing, Seals & Spring Washers for zero leakage from gland.

Mounting

• Interface: ISO 5211.
• Body MOC : CS, CF8, CF8M.
• Trim MOC : CF8, CF8M.
• Seat MOC : PTFE, GFT, PEEK (Special on Request).
• Size: 1″ (25mm) to 8″ (200mm).
